README.md

Sample code for doing Microsoft Azure Attestation in Occlum init

This demo is programming in RUST, based on the Azure provided REST APIs. It provides steps to do SGX quote generation and attestation in Occlum init process and save the attestation token to rootfs.

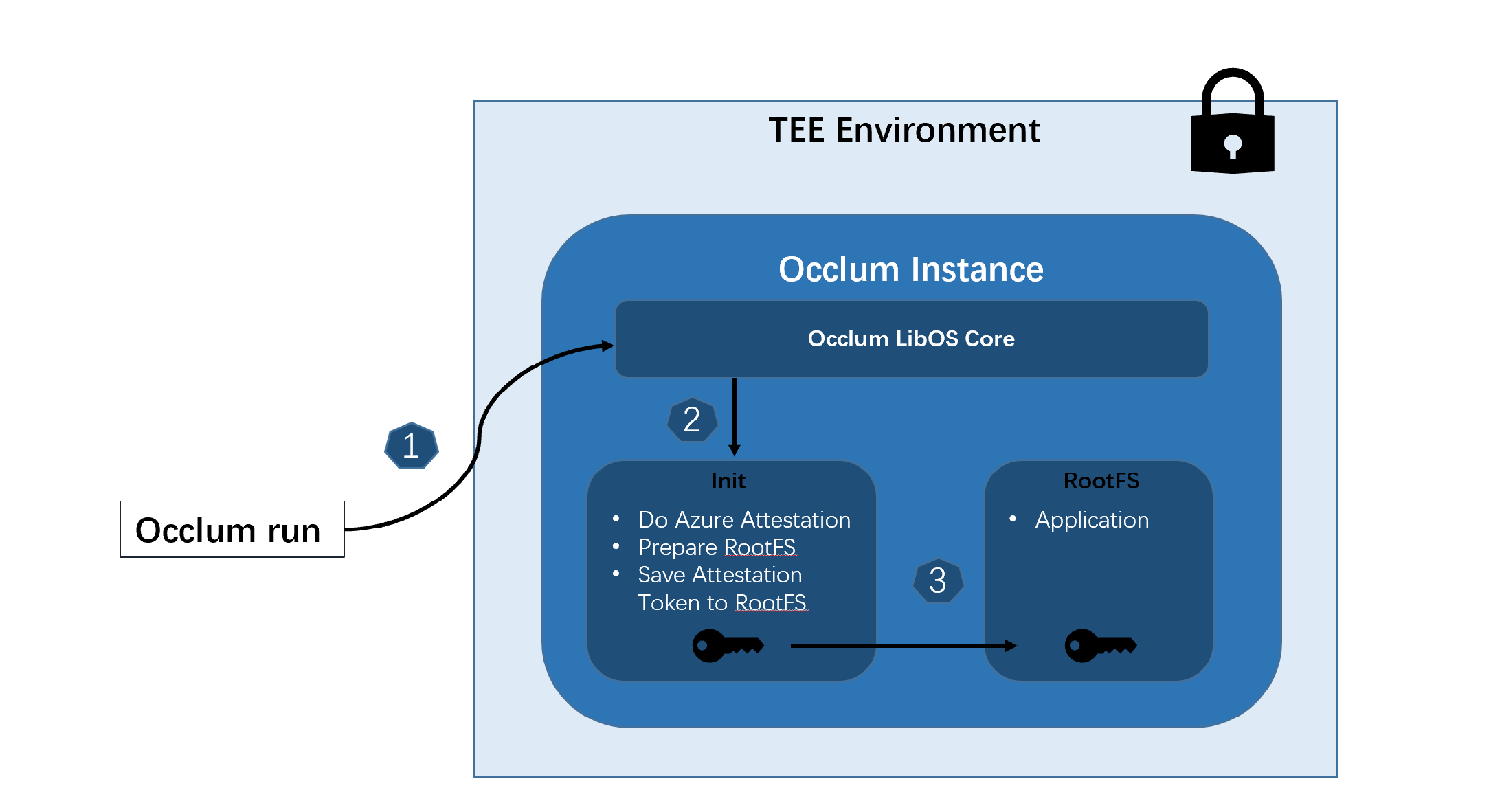

Flow

Occlum run to start the Occlum instance.
For every Occlum instance, it starts init process first, then starts the real application in RootFS. The default init process just run RootFS integrity check and then load the RootFS where the real application is located. For this demo, a modified init is used. Besides the general init operation, it does Azure Attestation and saves the token to /root/token in RootFS where the real application can access.
The real application starts with easy access to the Azure Attestation token. The application can set its own strategy for the token. In this demo, a simple busybox as real application is used to print the content of attestation token obtained in init process.

Environments

There are three environments below which are provided to users to modify according to the actual scenarios.

MAA_PROVIDER_URL The MAA provider URL, this demo uses "https://shareduks.uks.attest.azure.net" In default.
MAA_REPORT_DATA The report data (base64 encoded string) to be used for MAA quote generation.
MAA_TOKEN_PATH The MAA token and raw quote saved path in rootfs which is /root in default. Thus applications could find the attestation response token and raw quote (base64 encoded) in /root/token and /root/quote_base64.

Please refer to the scrit for how to modify the above environments.

Build

Pull rust-sgx-sdk submodule which is the dependence of occlum dcap library.

# cd occlum
# git submodule update --init

Do the build with the scrit.

# ./build.sh

# cd occlum_instance
# occlum run /bin/busybox cat /root/token

If successful, it prints the Azure attestation token.
