Occlum RA Flow in a real demo

Overview

Remote attestation is a key part in the confidential computing. Occlum provides a DCAP Library to ease the RA application. A brief Occlum RA introduction is a good entry point. But still, utilizing the RA in a real application is complicated for general developers.

Occlum provides a Init RA way to separate the RA operation and the actual application. With this way, the APP developers don't need know too much about the RA and the application doesn't need to be modified for RA.

This demo shows the Init RA way with a sample Flask TLS web application, based on GRPC-RATLS server/client implementation and a customized init for Occlum InitFS.

Note: users could choose different init by passing parameters on occlum init or occlum new. In this demo, grpc-ratls client is chosen.

The GRPC-RATLS server holds some sensitive data thus it is usually deployed on secure environment. The application consuming the sensitive data could be deployed on general environment, such as Cloud service vendor provided SGX instance. For this demo, all are running on one SGX machine.

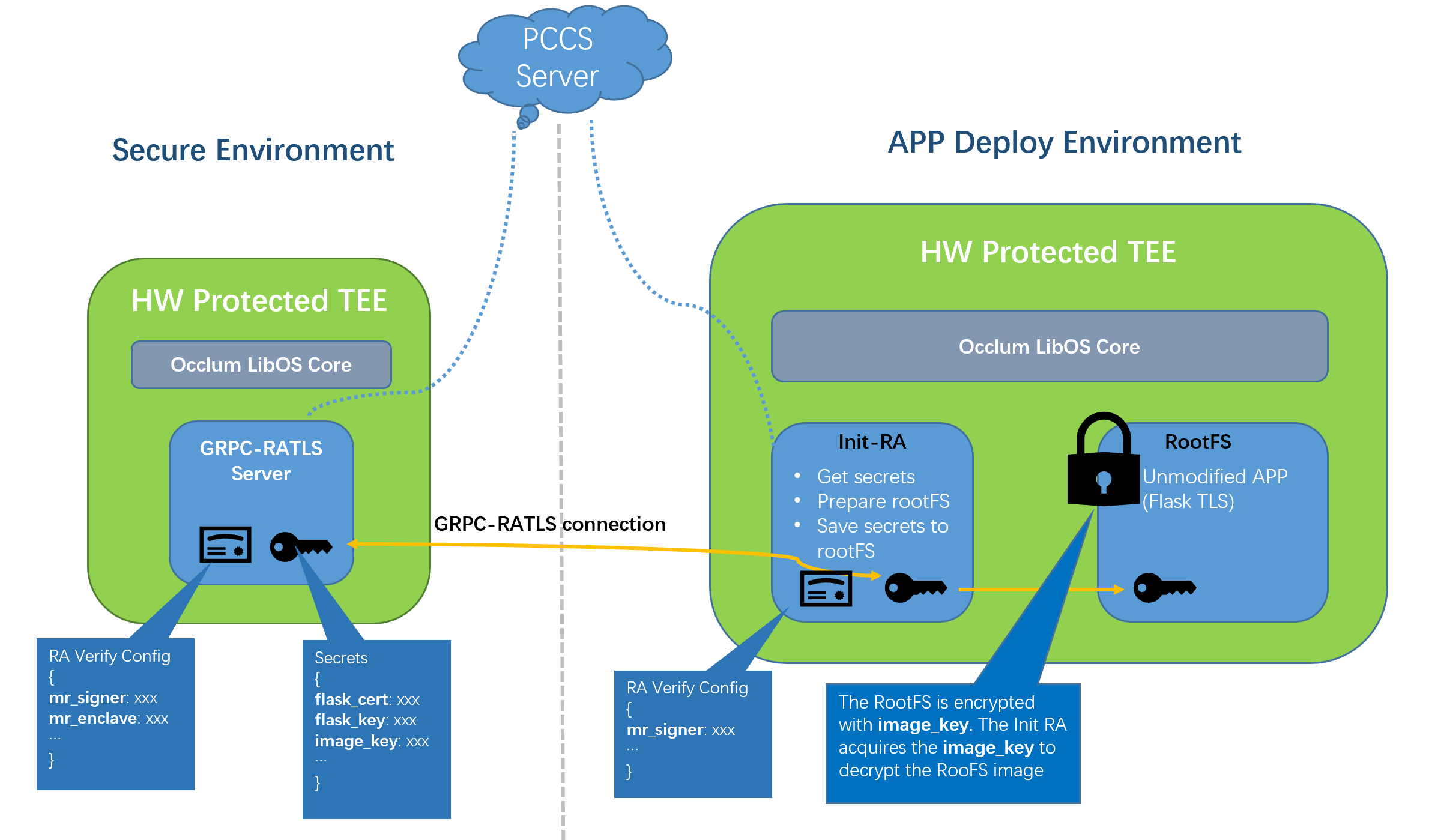

Flow

• Starts the GRPC-RATLS server. It holds RA Verify Config JSON and Secrets JSON files. The RA Verify Config JSON records which SGX quote part should be verified. The template is ra_config_template.json, all supported verify_xxx are on in default.

{
    "verify_mr_enclave" : "on",
    "verify_mr_signer" : "on",
    "verify_isv_prod_id" : "on",
    "verify_isv_svn" : "on",
    "verify_config_svn" : "on",
    "verify_enclave_debuggable" : "on",
    "sgx_mrs": [
        {
            "mr_enclave" : "",
            "mr_signer" : "",
            "isv_prod_id" : 0,
            "isv_svn" : 0,
            "config_svn" : 0,
            "debuggable" : false
        }
    ],
    "other" : []
}

Users need decide which verify_xxx are taking effect.

1. if yes, fill in the measures data under sgx_mrs.
2. if no, set verify_xxx to off.

• config_svn is a 16 bits information brought by SGX KSS feature, which provides a benefit that the enclave SGX quote (config_svn part) could be modified in running stage instead of signing stage.

Details could refer to the build_server_instance in script build_content.sh.

The RA Verify Config JSON records the secrets. Each secret has a name and its base64 encoded string value, such as

{
    "flask_cert" : "dGVzdCBzYW1wbGUgY2VydGlmaWNhdGVzCg==",
    "flask_key" : "dGVzdCBzYW1wbGUga2V5Cg=="
    "image_key" : "YTUtNmQtN2YtY2YtYWUtOTMtZTItMWYtNWItOGEtODMtM2YtNzktNzgtMjktZmYK"
}

flask_cert and flask_key are generated by openssl by script gen-cert.sh. They are used for the Flask-TLS restful sever set-up.

image_key is used to encrypt the Occlum APP RootFS image which is Flask-TLS in this demo. It is generated by command occlum gen-image-key image_key. The image encryption could be done by occlum build --image-key image-key. With this encryption, anything saved in the RootFS has a good protection.

• Starts the Flask-TLS-Infer demo. For every Occlum built application, it starts init process first, then starts the real application in RootFS. The default init process just run RootFS integrity check and then load the RootFS where the real application is located.

For this demo, a customized init is used. Besides the general init operation, it embeds the GRPC-RATLS client API grpc_ratls_get_secret, gets the secrets(base64 encoded) from the GRPC-RATLS server, does base64 decoding, acquires the real secrets. The image_key is used to decrypt the RootFS image. The other two are saved to RootFS. In this example, they are /etc/flask.crt and /etc/flask.key. Finally, when the Flask-TLS app is running, all secrets are securely obtained already in init thus the app runs successfully without RA involvement in this stage.

Also, to configure which KMS server (GRPC-RATLS server) is to be trusted, the default init_ra_conf.json needs modified accordingly. Details please refer to the function update_client_init_ra_conf in the script build_content.sh.

How-to build the demo

A valid PCCS service should be accessible in your environment. This demo is verified in Aliyun, thus https://sgx-dcap-server.cn-shanghai.aliyuncs.com/sgx/certification/v3/ is used as the PCCS URL. For example,

• Start the Occlum develop container

docker run --rm -it \
     --device /dev/sgx/enclave --device /dev/sgx/provision \
     occlum/occlum:latest-ubuntu20.04 bash

In the container, update the pccs_url in the file /etc/sgx_default_qcnl.conf with the valid address.

• Just run build_content.sh which builds everything. Once successful, two Occlum instances are created.

occlum_client
occlum_server

How-to run

• Starts the GRPC-RATLS server in background.

cd occlum_server
occlum run /bin/server localhost:50051 &

• Starts the Flask-TLS web portal in backgroud.

cd occlum_client
occlum run --config-svn 1234 /bin/rest_api.py &

Above two could be executed in one script run.sh.

• Access the Flask-TLS web portal with valid certificate.

curl --cacert flask.crt -X PUT https://localhost:4996/customer/1 -d "data=Tom"
curl --cacert flask.crt -X PUT https://localhost:4996/customer/2 -d "data=Jerry"
curl --cacert flask.crt -X GET https://localhost:4996/customer/1
curl --cacert flask.crt -X GET https://localhost:4996/customer/2
